KHE Series

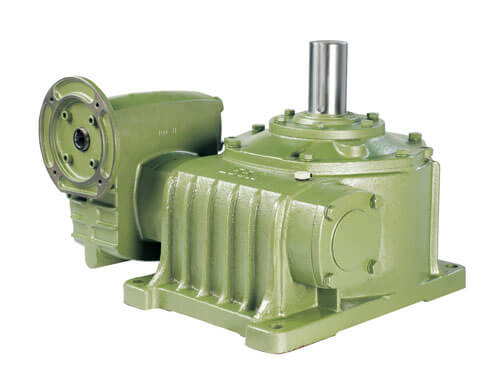

Two-Stage Worm Gear Reducer (Worm Worm)
DM Download
  • Product Description
  • Product Specification

Disassembly diagram of Two-stage worm gear reducer-KHE series (worm-worm)

NOPARTNAMENOPARTNAME
1 CASE 18 PAPER PACKING
2 WORM WHEEL 19 PAPER PACKING
3 WORM SHAFT 20 CASE
4 OUTPUT SHAFT 21 WORM WHEEL
5 OUTPUT SHAFT COVER 22 WORM SHAFT
6 KEYFOR WHEEL 23 OUTPUT SHAFT COVER
7 INPUT SHAFT COVER 24 MOTOR FLANG
8 INPUT BEARING 25 INPUT SHAFT COVER
9 OUTPUT BEARING 26 INPUT BEARING
10 OIL SEAL INPUT 27 OIL SEAL INPUT
11 OIL SEAL OUTPUT 28 OIL GAUGE
12 OIL GAUGE 29 OIL PLUG
13 OIL PLUG 30 BOLT INPUT
14 DRAIN PLUG 31 SHIM
15 KEYFOR WHEEL 32 PAPER PACKING
16 BOLT INPUT 33 PAPER PACKING
17 BOLT OUTPUT 34 SNAP RING

SIZELLLN1N2N3ND1D2D3DEEEFGK
80 239 135 140 70 120 210 130 80 150 320 140 176 140 20 15
100 293 161 170 90 150 260 155 100 180 375 190 226 85 27 15
120 340 185 190 100 170 290 185 120 215 450 220 266 101 30 18
135 340 185 210 110 190 320 210 135 235 495 260 306 125 35 18
155 449 257 252 140 240 392 145 155 265 456 290 336 158 32 20
175 513 290 262 150 270 412 167 175 293 516 320 376 166 32 20
SIZEHPMOTOR FLANGEINPUT BOREOUTPUT SHAFTKG
1/100~1/9001/100~1/3600ABCZWXYOPMQR
80 1/4 1/8 110 130 160 M8 11 4 12.5 65 60 32 10 35.5 26
100 1/2 1/4 110 130 160 M8 11
14		 4
5		 12.5
16		 75 70 38 10 41.5 47
120 1 1/2 110
130		 130
165		 160
200		 M8
M10		 14
19		 5
6		 16
21.5		 85 80 45 12 48.5 68
135 2 1 130 165 200 M10 19
24		 6
8		 21.5
27		 95 90 55 15 60 107
155 3 2 130
180		 165
215		 200
250		 M10
M12		 24
28		 8
8		 27
31		 110 105 60 15 65 139
175 5 3 180 215 250 M12 28 8 31 110 105 65 18 71 197

  Shaft Arrangement and Rotation Direction
