BHE Series

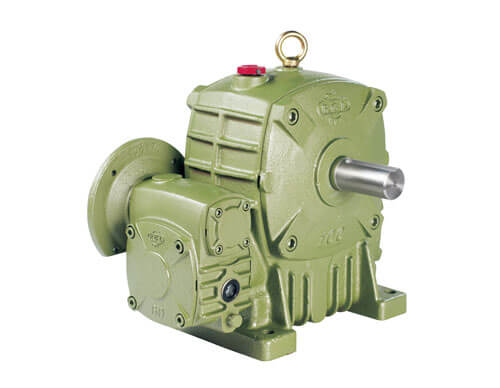

Two-Stage Worm Gear Reducer (Worm Worm)
DM Download
  • Product Specification
SIZELLLNNND1D2DEEEIIIGK
80 239 135 280 140 130 160 265 180 220 135 170 20 15
100 293 161 255 170 160 200 362 220 270 155 190 25 15
120 340 185 291 190 190 240 424 260 320 180 230 30 18
135 401 215 335 210 215 270 481 290 350 200 250 30 18
155 449 257 410 252 235 290 512 320 380 220 280 32 20
175 513 290 428 262 280 335 577 350 410 250 310 37 20
200 548 310 493 305 310 375 650 350 420 290 360 42 27
225 599 329 523 335 325 415 702 390 460 330 410 45 27
250 660 365 563 360 355 450 755 440 520 380 460 50 27
SIZEHPMOTOR FLANGEINPUT BOREOUTPUT SHAFTKG
1/100~1/9001/100~1/3600ABCZWXYOPMQR
80 1/4 1/8 110 130 160 M8 11 4 12.5 65 60 32 10 35.5 26
100 1/2 1/4 110 130 160 M8 11
14		 4
5		 12.5
16		 75 70 38 10 41.5 47
120 1 1/2 110
130		 130
165		 160
200		 M8
M10		 14
19		 5
6		 16
21.5		 85 80 45 12 48.5 74
135 2 1 130 165 200 M10 19
24		 6
8		 21.5
27		 95 90 55 15 60 100
155 3 2 130
180		 165
215		 200
250		 M10
M12		 24
28		 8
8		 27
31		 110 105 60 15 65 132
175 5 3 180 215 250 M12 28 8 31 110 105 65 18 71 194
200 7-1/2 5 180
230		 215
265		 250
300		 M12 28
38		 8
10		 31
41		 125 120 70 20 76 251
225 10 7-1/2 230 265 300 M12 38 10 41 140 135 80 20 86 315
250 15 10 230
250		 265
300		 300
350		 M12
M16		 42 12 45 155 150 90 24 98 395

  Shaft Arrangement and Rotation Direction
